Sanitary Stainless Steel Clamp Check Valve
RR Steel manufactures sanitary stainless steel clamp check valves with spring-assisted closing mechanisms for one-way flow and backflow prevention in hygienic process piping systems.
The sanitary clamp connection allows convenient installation, removal, inspection and maintenance. Available in stainless steel 304 and 316L with customizable sizes, springs, discs and seals for food, beverage, dairy, brewery, pharmaceutical, biotech and other hygienic fluid applications.
OEM manufacturing is available according to customer drawings and project requirements.
Wenzhou Ruirui Stainless Tube Co., Ltd. (RR Steel) manufactures sanitary stainless steel clamp check valves for one-way flow and backflow prevention in food, beverage, dairy, pharmaceutical and other hygienic process piping systems.
The valve consists of a stainless steel body, internal disc, spring and sanitary clamp connections. Forward flow opens the valve disc when the required opening condition is reached. When flow stops or reverse pressure occurs, the spring assists the disc in returning to the closed position to restrict reverse flow.
The internal design combines a valve body, disc, spring and related sealing components.
Key characteristics include:
Automatic one-way operation
No manual valve operation required
Spring-assisted disc closing
Backflow prevention
Suitable for hygienic fluid piping
Spring configurations available according to project requirements
Actual valve opening conditions depend on valve size, spring configuration, process fluid and system pressure. Cracking pressure should therefore be confirmed according to the specific application.
The valve uses sanitary clamp connections for installation with compatible clamps and gaskets.
Key benefits include:
Convenient installation and removal
Easier internal inspection
Convenient seal and component maintenance
Suitable for regularly cleaned process systems
Compatible with sanitary clamps, gaskets and fittings
Connection dimensions and standards can be supplied according to customer piping specifications.
RR Steel sanitary check valves are available in stainless steel 304 and 316L according to application requirements.
Stainless Steel 304
Suitable for many general food, beverage and hygienic fluid processing applications.
Stainless Steel 316L
Suitable for process environments requiring higher corrosion resistance and hygienic material performance.
Material selection should be based on process media, cleaning procedures, operating environment and project specifications.

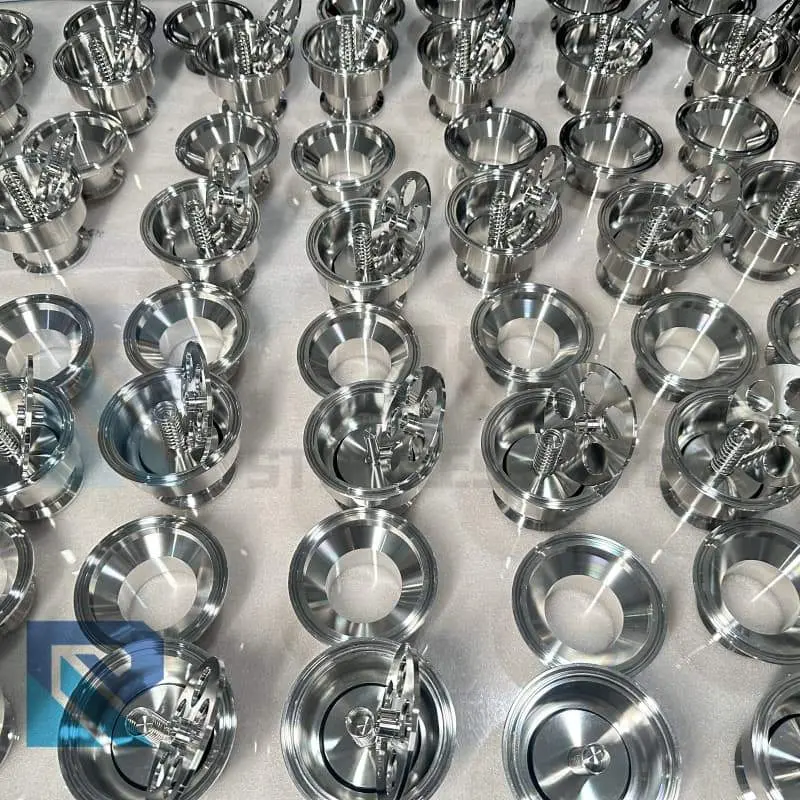

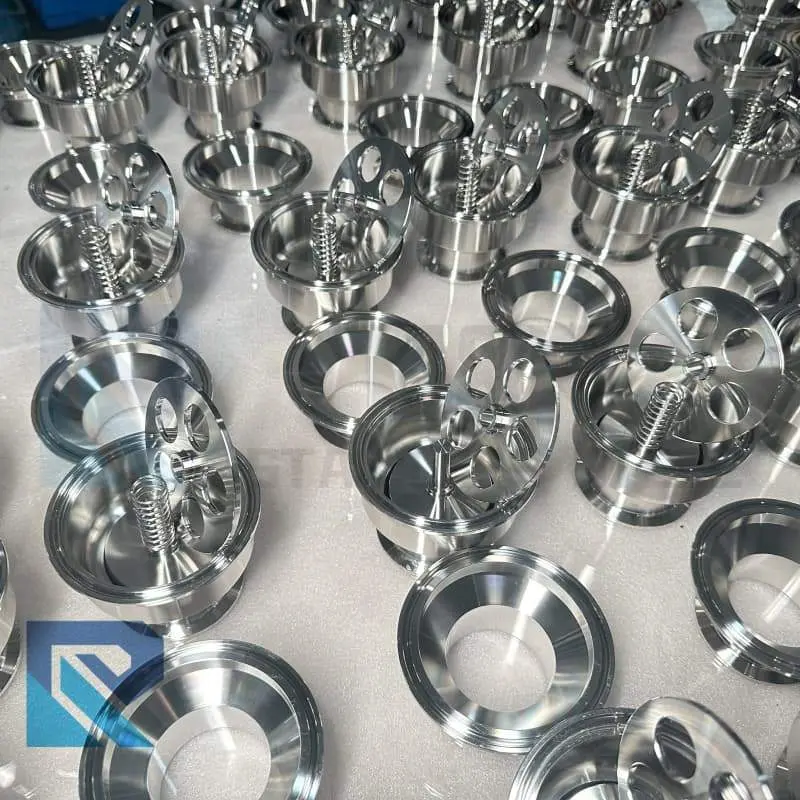

The clamp-secured valve body allows access to internal components such as the valve disc, spring and sealing parts.
This design facilitates:
Inspection of the internal valve disc
Spring inspection or replacement
Seal inspection and maintenance
Valve servicing
Internal component configuration according to project requirements
这一段英文正文旁边，同样建议直接放你刚才那组真实拆解生产照片。它会比图库式白底成品图更能证明RR Steel的制造能力。
Sanitary Clamp Check Valve
Uses sanitary clamp connections for convenient installation, removal, inspection and maintenance.
Sanitary Weld Check Valve
Uses weld ends for direct integration into stainless steel piping and is suitable for fixed piping installations.
Selection depends on piping connection requirements, maintenance needs and project specifications.
Valve Body: Stainless Steel 304 / 316L
Type: Spring-Loaded Check Valve
Connection: Sanitary Clamp
Function: One-Way Flow / Backflow Prevention
Disc: Configured according to product and project requirements
Spring: Selected according to operating requirements
Seals: Selected according to fluid and operating conditions
Sizes: Available according to product and project requirements
Surface Finish: Available according to hygienic requirements
OEM: Custom manufacturing from drawings, samples or specifications
Food Processing
Beverage Processing
Dairy Processing
Brewery Systems
Pharmaceutical Equipment
Biotech
CIP Systems
Hygienic Process Piping
Automated Fluid Transfer Systems
RR Steel provides OEM manufacturing of sanitary stainless steel clamp check valves according to customer drawings, samples and project specifications.
Valve dimensions, stainless steel grades, clamp connections, discs, springs, seals and internal components can be configured according to piping and equipment requirements.
Matching sanitary stainless steel clamps, gaskets, fittings, elbows, tees, reducers and other piping components are also available.
A sanitary clamp check valve allows fluid to flow in the intended direction and automatically closes when flow stops or reverse pressure occurs, helping prevent backflow in hygienic piping systems.
Forward flow opens the internal valve disc when the required opening condition is reached. When flow stops or reverses, the spring assists the disc in returning to the closed position.
They are commonly used in food, beverage, dairy, brewery, pharmaceutical, biotech and other hygienic fluid processing and piping systems.
Yes. RR Steel can supply sanitary check valves in stainless steel 304 and 316L with seals, springs and internal components selected according to process and project requirements.
Spring and internal configurations can be selected or customized according to project requirements. The actual cracking pressure should be confirmed according to valve size, spring configuration and operating conditions.
